SPECIFICATIONS

Applicable Object: For Game

Battery Included: Yes

Brand Name: HXSJ

Choice: yes

High-concerned chemical: none

Interface: USB,USB

Keyboard Connection: WireLess

Model Number: V200+T90

Mouse Connection: WireLess

Origin: Mainland China

Package: Yes

Supports Human Engineering: Yes

Type: ERGONOMIC,Gaming,Mini,Standard

Mouse Parameters:

Brand/Model: HXSJ/T90

Product Name: Three Mode Wireless Charging Mouse

SENSOR:FR2012+3212

Default return rate:

BT mode：125HZ

2.4G mode：250HZ

Wired mode:1000HZ

Movement speed: 30IPS

Refresh rate: 4800FPS

Acceleration: 10G

Operation Mode: Opto-electronic

Type:Wired/2.4 GHz/BT5.3

Wire length:1.8M（Wear resistant woven data cable）

Power Type : Rechargeable

Number of keys : 6 keys

Key life : 10 million switches（Mute Switch）

Light type : 6 RGB lighting modes

Wireless distance : 10m

Battery capacity : 650mAh

Movement Speed: 800-1200-1600-2400-3600

Rated voltage / current : 3.7V / 12mA

Product weight : 86g

Product size : 12.5 * 6.3 *4.1cm

Package weight ：147 g

Package size : 13.5*8.5*4.7 cm

Package includes :

1 x Three Mode Mouse

1 x USB Receiver

1 x Type-C charge cable(180cm)

1 x Instruction manual

Applicable system:

Windows ( windows XP / Vista / 7 / 8 / Server 2003 / 2000 / Win10 ,etc) Android (Android4.3 above)Mac OS (mac OS 10.10 above is recommended).

Applicable equipment:

Suitable for desktop computers, notebook computers, smart TV with USB in terface, etc.

How to use:

Wired connection:

Insert the mouse USB cable into the USB port of the computer.

The data cable Type-C interface can be directly used when the

mouse is inserted.

2.4G connection:

1. Flip the power switch at the bottom upward to the ON position

2. Plug the 2.4G receiver into your computer.

3. Hold down the mode switch button for 3s to enter the code

matching state. The indicator blinks red rapidly, and the indicator

turns off when the pair is successful.

BT1/BT2 connection:

1. Flip the power switch at the bottom upward to the ON position.

2. Hold down the mode switch key for 3s to enter the code matching

state.

BT1: The green light blinks rapidly during code alignment and blinks

green during connection back. The indicator is off when

successfully connected.

BT2: The blue light blinks rapidly during code alignment and blinks

when connected back. The blue light blinks off when successfully

connected.

Keyboard Specification：

Product number: V200 RGB Gaming Keyboard

lnterface Type: USB

Product solutions: SK9708

Number of keys:68 Keys

Button life: 10 million times or more

Operating Voltage: 5.0V+5% DC

Working current: 110mA(MAX)

System compatibility: Compatible with IBM PC Win98SE/Me/2000/XPIVISTA/WIN 7/WIN10

Product line length:170CM

Keycap material: ABS injection molding

Multimedia: With multimedia (laser carving)

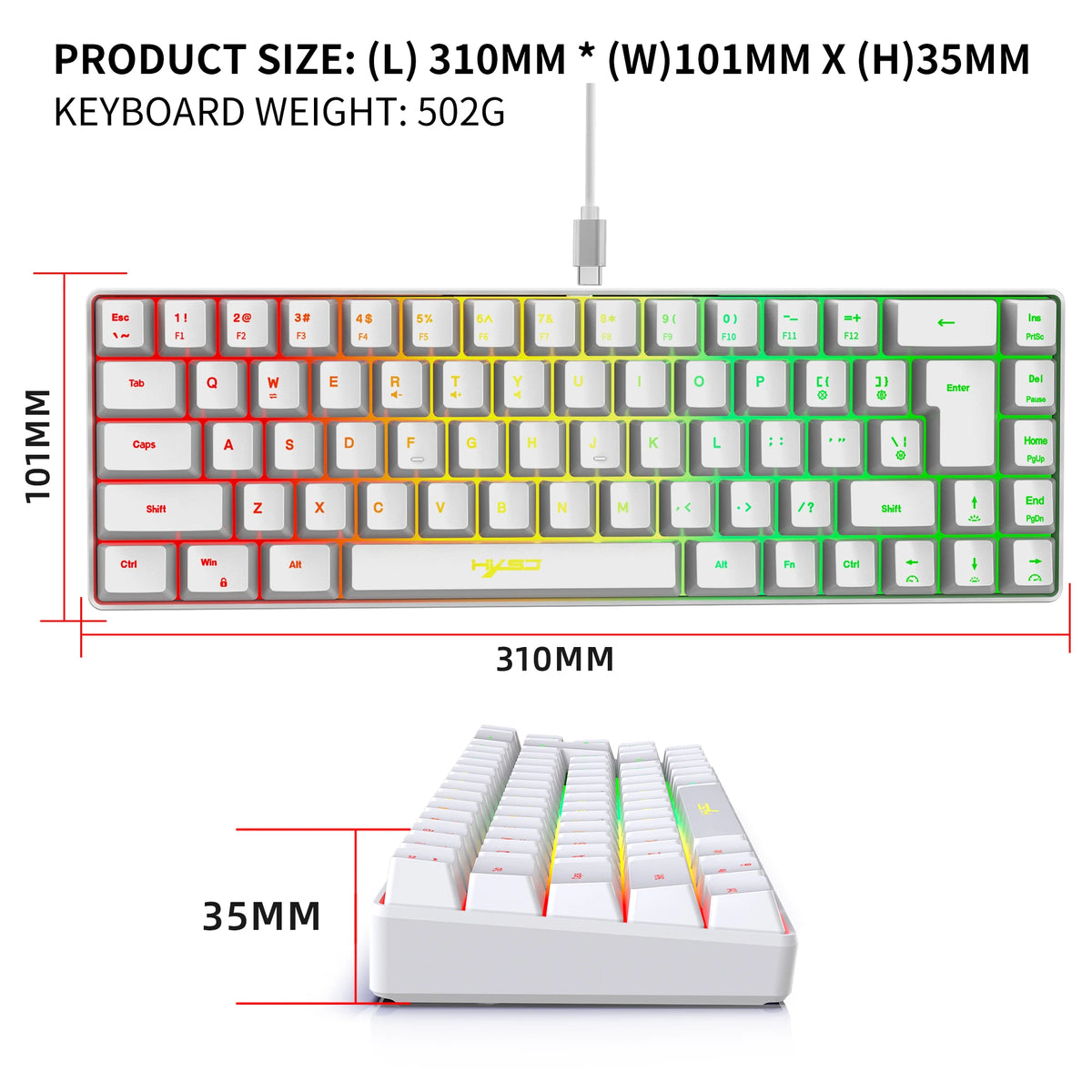

Product Size：31*10.1x 35cm

Product weight：333g

Package Size: 33.5*13*4.5cm

Package weight:479g

Package included:

1x Gaming keyboard

1x English User manual

Product function introduction:

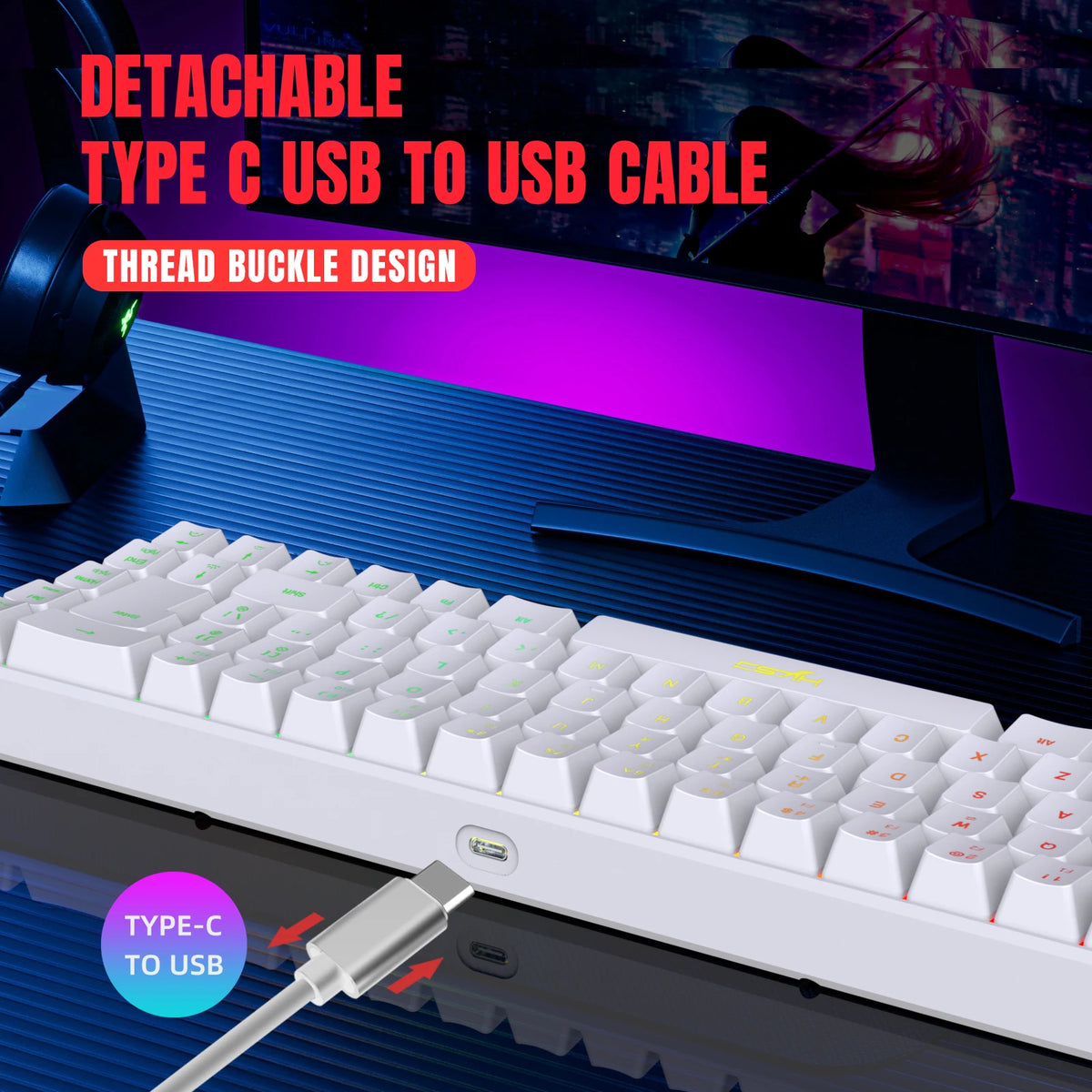

The keyboard is a Type-Cinterface, which is connected to the host with a Type-C to USB interface cable.

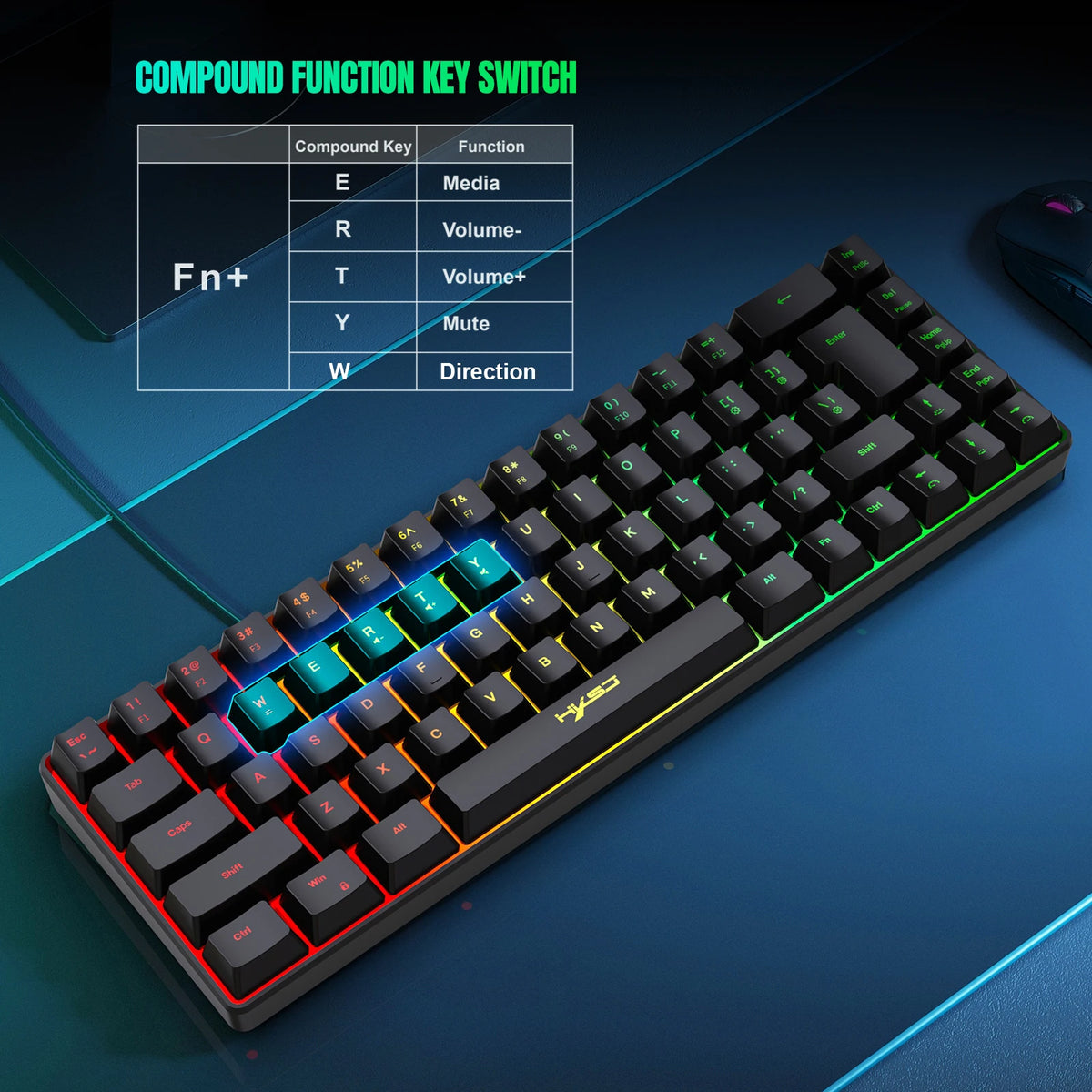

4-1.Volume adjustment:

FN+R key for volume reduction,FN+T key for volume plus，FN+Y key for mute;

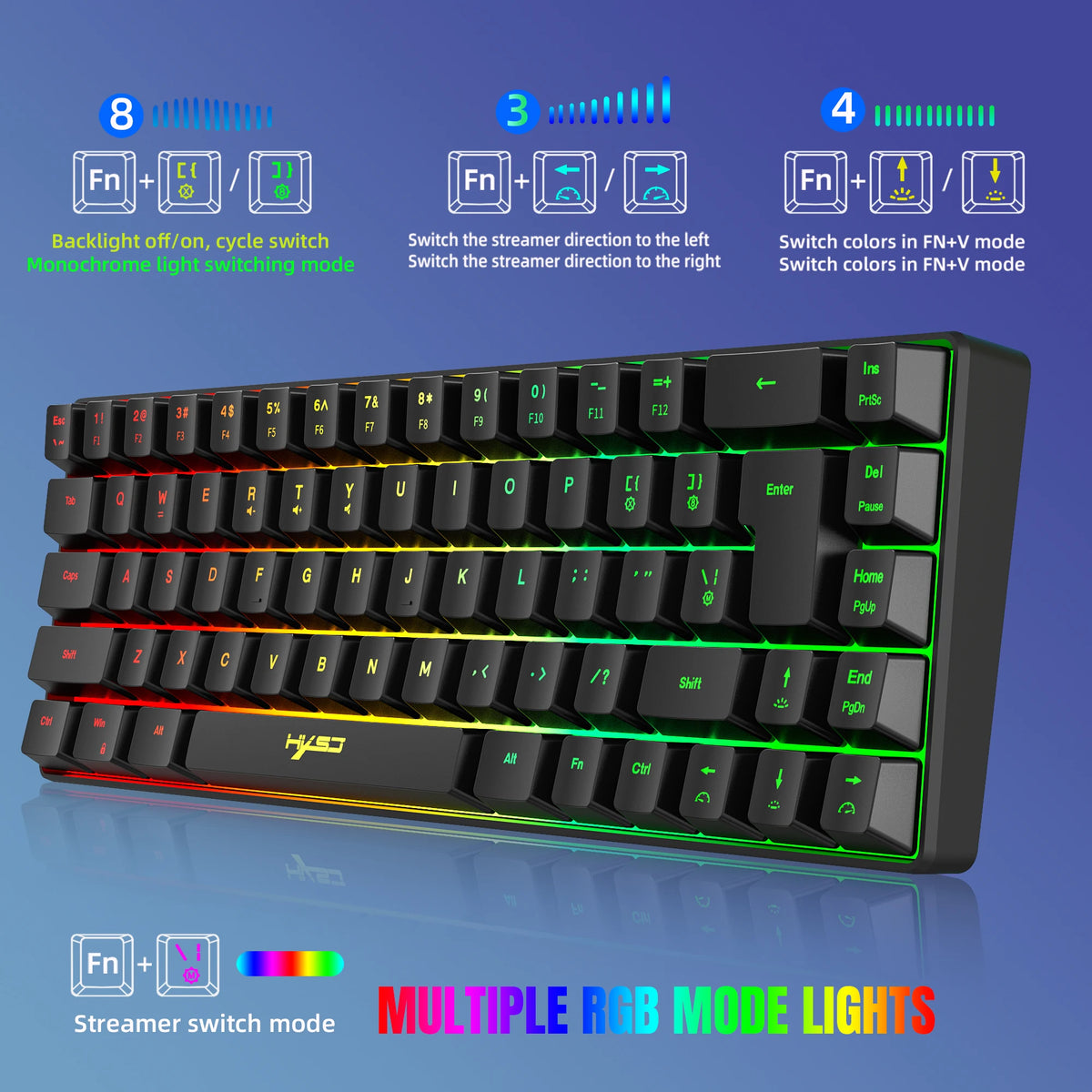

4-2.Backlight adjustment:

FN + left arrow key to adjust the streamer speed to slow down,

FN + right arrow key streamerspeed acceleration, there are 4 speed adjustable speed;The constant light backlight cannot be adjusted;

FN + up arrow key and FN + down arrow key to adjust backlight brightness, 4 levels adjustable;

FN+ {[ key: backlight off/on, cycle switch;

FN+] Key: Streamer switch mode;

FN+ ]}key : monochrome light switching mode;

FN+W: W.A S.D key and arrow key switching function, cyclic switching;

FN+Win: Lock the Win key, repeat unlock

4-3.Compound function key switching:

FN + Esc key = '~FN +9(key = F9

FN+ 1! key = F1FN+ O) key = F10

FN + 2@ key = F2FN + - key = F11

FN + 3# key = F3FN+=+ key = F12

FN+ 4$ key = F4FN+ Back key = Delete

FN +5% key = F5FN+INS key = Prtsc

FN+6^ key = F6FN + Del key = Pause

FN+ 7& key = F7FN + Home key = Pgup

FN+8* key = F8FN+ End key = Pgdn
